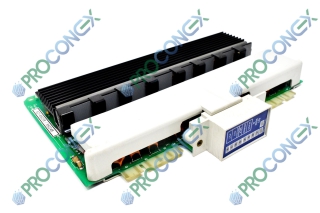

621-6503R – Honeywell

Source Self-Protected Discrete Output from Honeywell

Product Specifications

Model/Part Number: 621-6503R

Part Type: Source Self-Protected Discrete Output

Origin: Made in USA

Delivery: 1 week

Note: Proconex Pvt. Ltd. is NOT an authorized distributor for any of the brands mentioned on this website.

In-Stock: 1

Available, can ship immediately

Part Condition

Choose Part Conditions

Part Availability

Choose Part Availability

Part Details:

Model N0 : 621-6503R.

Part No : DLBL 10110105.

Origin : US.

OUTPUT RATING : 11-28 VDC.

OUTPUT MODULE :  12-24 VDC.

Points Per Common : 4.

Special Feature : Source Output.

Nominal Voltage : 12-24 Vdc.

Maximum Current Range : 2 A/circuit,6 A/common,8 A/module.

Field Power Requirement : 25 mA at 12 Vdc <=45 mA at 24 Vdc for each energized  output.

Off-State Leakage Current : <=5 mA (typical).On-State Voltage Drop : <=2 Vdc at 2 A.

Fusing : 3 A fast blow per circuit, 7 A fast blow common.

Operating Current +5 Vdc : 70 mA plus 5 mA for each energized output, 110 mA.
