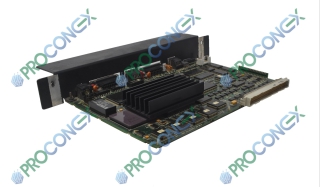

IC697CMM742CA-GH – GE Fanuc

Part Details:

Ethernet Interface Module.Model : IC697CMM742CA-GH.Class : I, Div -2 Groups ABCD.Module Operating Voltage : +5 VDC, +12 VDC (from PLC power supply)Module Current Drain : 2.0 Amps (+5 VDC), typical 0.5 Amps (+12 VDC), maximum when powering an external AUI transceiver.Module Operating Temperature : 0 C to +55 C (32 F to 131 F), ambientConnectors : – Station Manager (RS-232) Port : 6-pin female RJ-11 – Software Load (RS-485) Port : 15-pin female D-connector – 10BaseT Port : 8-pin female RJ-45 – AUI Port : 15-pin female D-connector with slide-lock – 10Base2 port : female BNC connectorFuse, Replaceable  : 5 x 20mm, 250V, 1.0A, slow acting Serial Ports : Station Mgr Port : RS-232 DTE 300 - 19200 bpsSoftware Load Port : RS-485 DTE 300 - 19200 bps
