621-6550 – Honeywell
In-Stock: 1
Available, can ship immediately
Part Details:

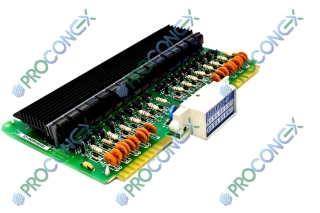

Source Discrete Output Module.
Model no : 621-6550R.Outputs : 16.
Points Per Common : 16.
Special Feature : Source Output.
Nominal Voltage : 24 Vdc.
Voltage Range : 18-28 Vdc.
Maximum Current Range : 2 A/circuit, 5 A/per group of 4, 12 A/module.
Surge Current : 8 A for 10ms (non-repetitive).
Field Power Requirement : 25 mA for each energized outputOff-State.
Leakage Current : <=5 mA (typical).
On-State Voltage Drop : <=2 Vdc at 2 A.
Fusing : 7 A fast blow 1 per group of 4.
Operating Current +5 Vdc : 124 mA plus 5 mA for each energized output, 204 mA max.
Terminal Block Required : 621-9950.
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process
