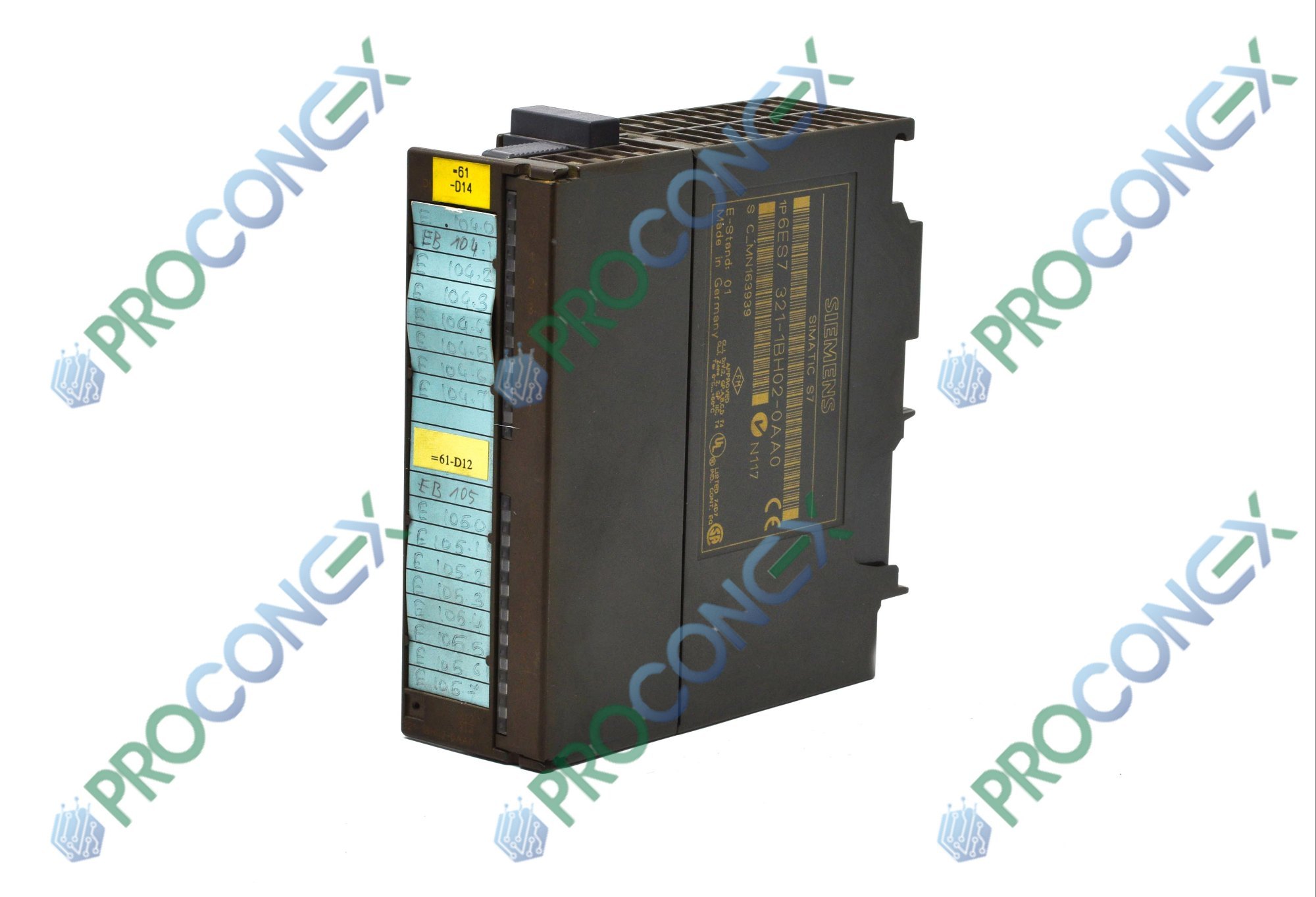

6ES7321-1BL00-0AA0 – Siemens
In-Stock: 1
Available, can ship immediately
Part Details:
Product type : Digital input SM 321.
Model No : 6ES7321-1BL00-0AA0.
Rated value (DC) : 24 V.
Permissible range, lower limit (DC) : 20.4 V.
Permissible range, upper limit (DC) : 28.8 V.
Power loss, typ. : 6.5 W.
Number of digital inputs : 32.
Input characteristic curve in accordance with IEC 61131, type 1 : Yes.
Type of input voltage : DC.
Rated value, DC : 24 V.
Cable length, shielded, max. : 1000 m.
Cable length unshielded, max. : 600 m.
2-wire sensor : Yes.
From backplane bus 5 V DC, max. : 15 mA.
Permissible range, upper limit (DC) : 28.8 V.
Permissible range, lower limit (DC) : 20.4 V.
Dimensions (LxWxH) : 12cm x 4cm x 12.5cm.
