A1S61PN – Mitsubishi

Part Details:

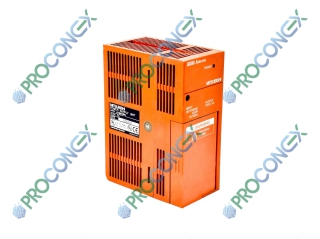

Mitsubishi Power Supply Unit.

Model : A1S61PN.

Base mounting position : Power supply unit mounting slot.

Input power supply voltage : AC 100 to 240 V (-15% to + 10%).

Input frequency : 50/60 Hz ± 5%.

Input voltage distortion : Within 5%.

Input maximum apparent power : 105 VA.

Inrush current : Within 20A 8ms.

Rated output current DC5V : 5A.

Overcurrent protection DC5V : 5.5A or more.

Overvoltage protection DC5V : 5.5 to 6.5V.

Efficiency : 65% or more.

Allowable momentary interruption time : Within 20ms.

Withstand voltage : Between the input · LG batch and the output · FG batch AC 2300 V / 1 min (elevation 0 ~ 2000 m).

Insulation resistance : Between input · LG batch and output · FG batch: 10 MO or more with DC 500 V insulation resistance tester.

Power display : Power supply LED display.

External wiring connection method : Screw terminal block (M3.5 screw).
