Part Details:

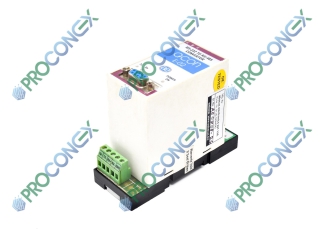

RS-232 TO RS-485 CONVERTER.

Model / Part No : ACON E-02.

OPTICAL ISOLATION  :- 1.5 KV.

INTERFACE  : RS232/ RS485- 2 Wire/ RS485- 4 wire.

OPERATION : MULTI-DROP FULL DUPLEX (RS485-4 W).

MULTI-DROP HALF DUPLEX (RS485- 2 W).

CONNECTOR :

FOR RS232 - DB9 FEMALE.

FOR RS 485 – TERMINAL BLOCK.

INDICATIONS :

POWER, TX, RX.

POWER :

24VDC.

INPUT SIDE RS232 CABLE CONNECTIONS:9 PIN MALE(Converter side).

9 PIN FEMALE(RS 232 side).
