DS200PLIBG1ACA – GE - General Electric
GE Phase Logic Interface Board. from GE - General Electric
In-Stock: 1
Available, can ship immediately
Part Details:
GE Phase Logic Interface Board.
Model :- DS200PLIBG1ACA.
Series :- Mark V.16.000MHz.
This is a gas turbine control system designed for use with gas or steam turbines.
The DS200PLIBG1ACA is often used within the EX2000 substructure of the MkV, which is used with brushless excitation systems to control ac terminal voltage.
DS200PLIBG1ACA is designed to act as an interface between the process controller’s phase logic and batch executions.

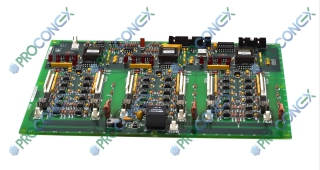

The DS200PLIBG1ACA has many connectors on its surface. This includes a line of six vertical pin connectors at its center.
The DS200PLIBG1ACA is also populated by eighteen LED indicators, placed in three groups of six.
There’s a single berg-type jumper located at the center top of the board.
Other components include resistors, integrated circuits, resistor network arrays, diodes, and capacitors. Most are marked by reference designators.
