Part Details:

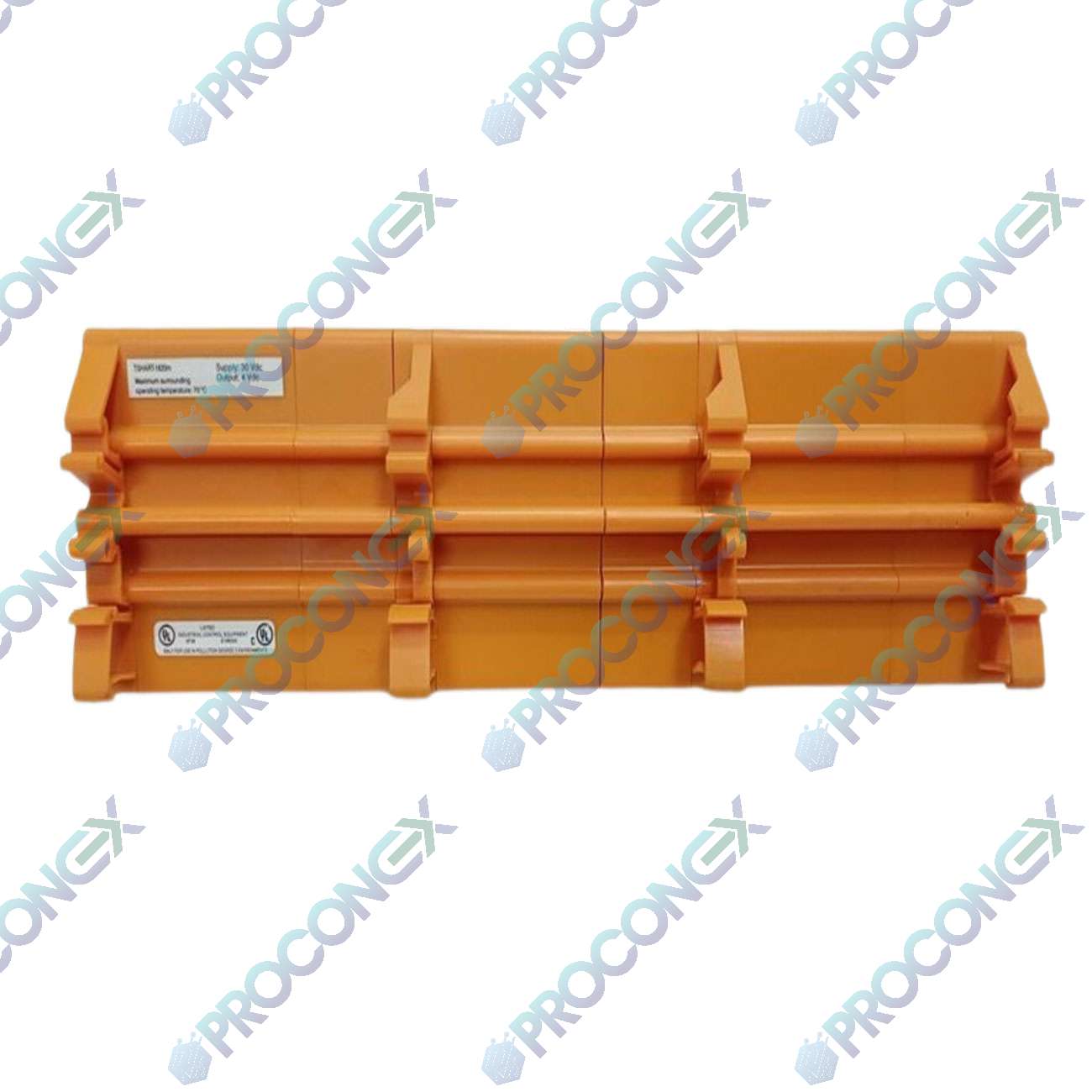

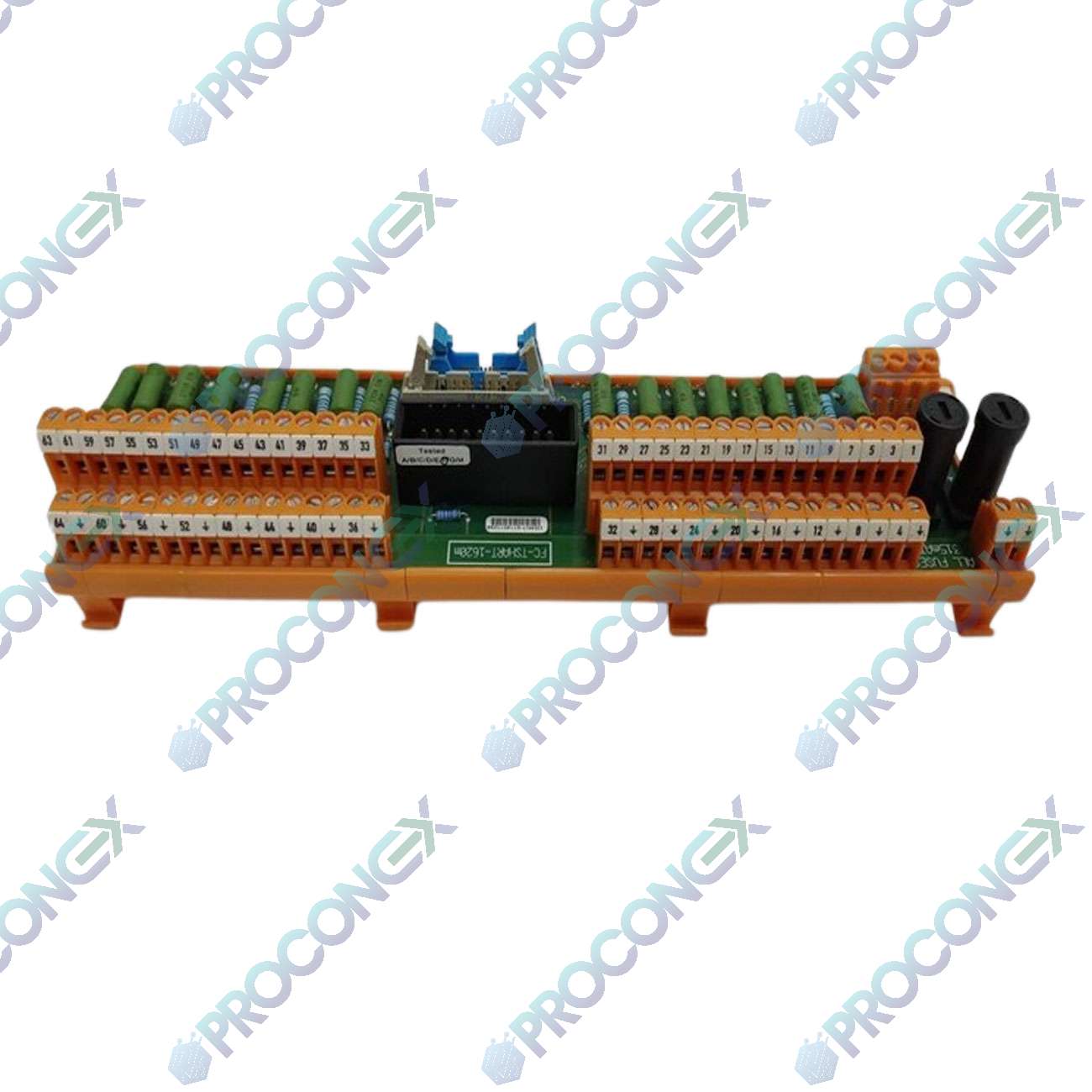

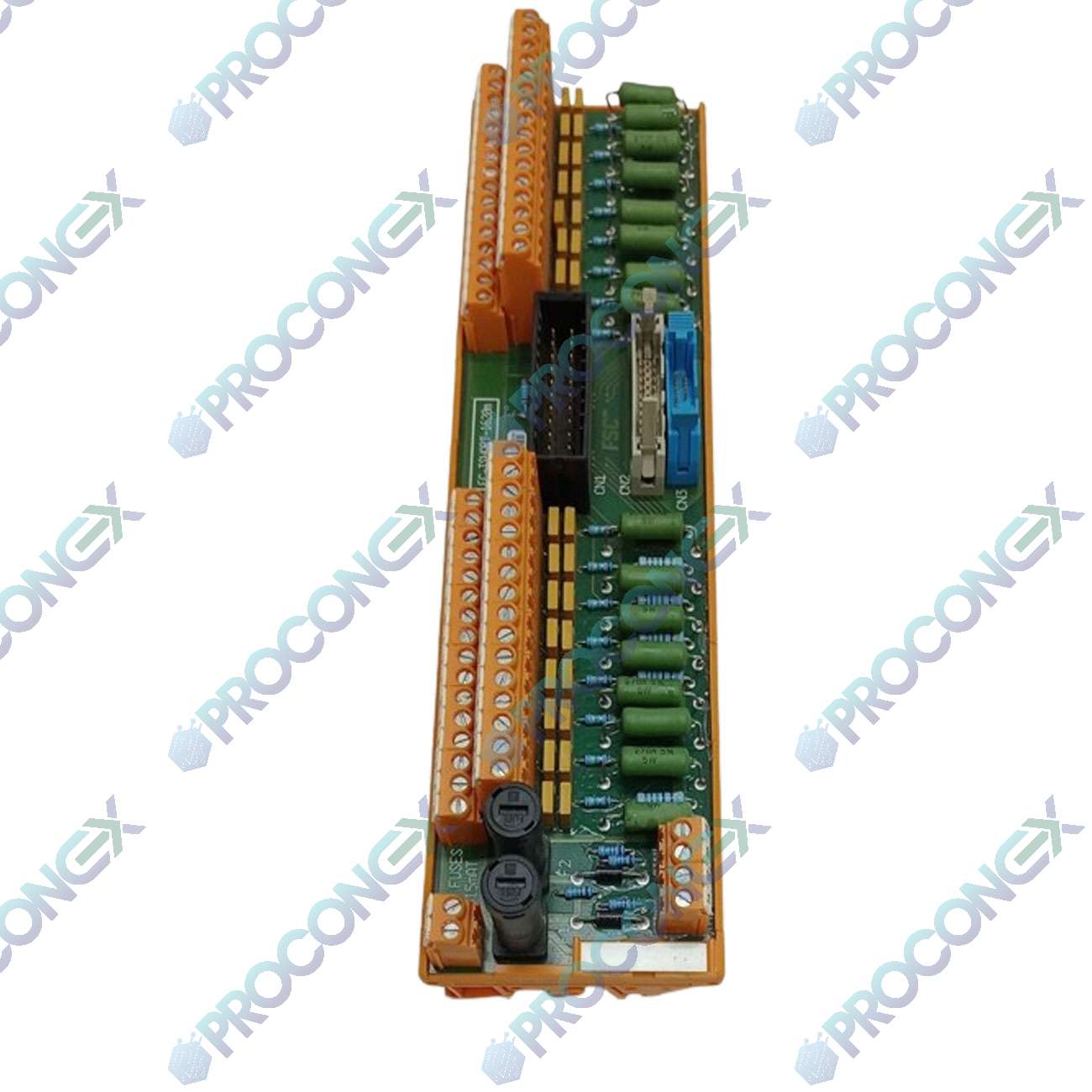

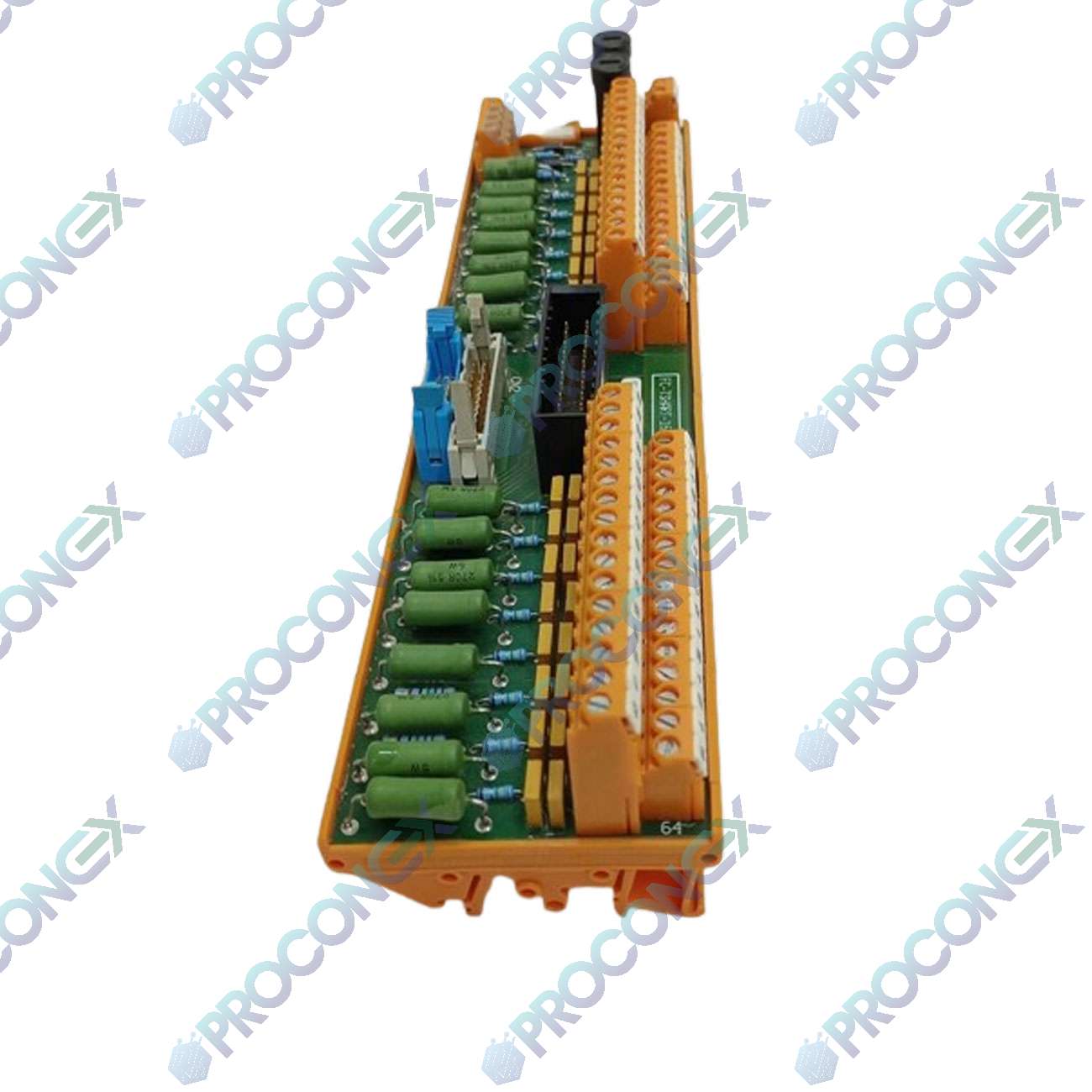

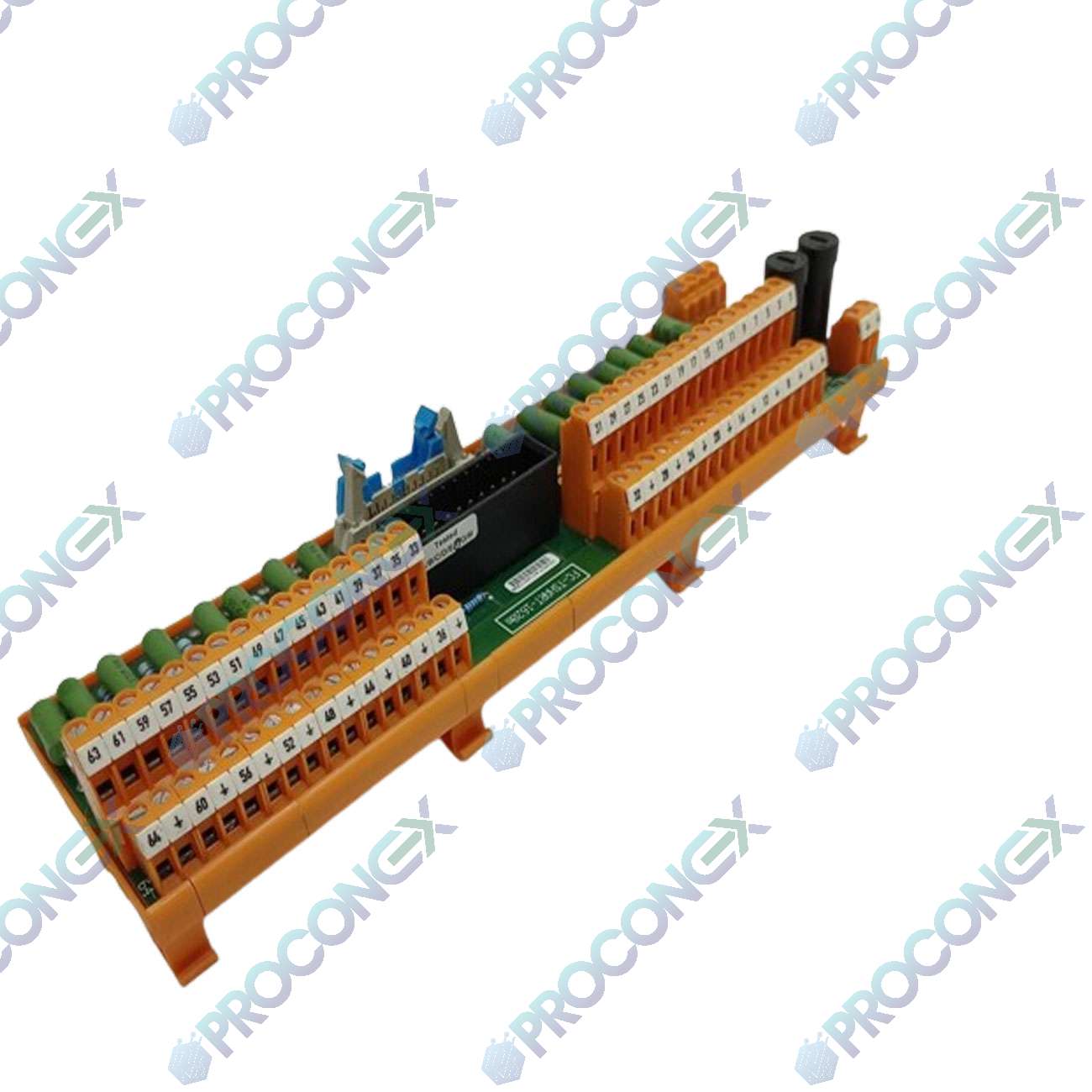

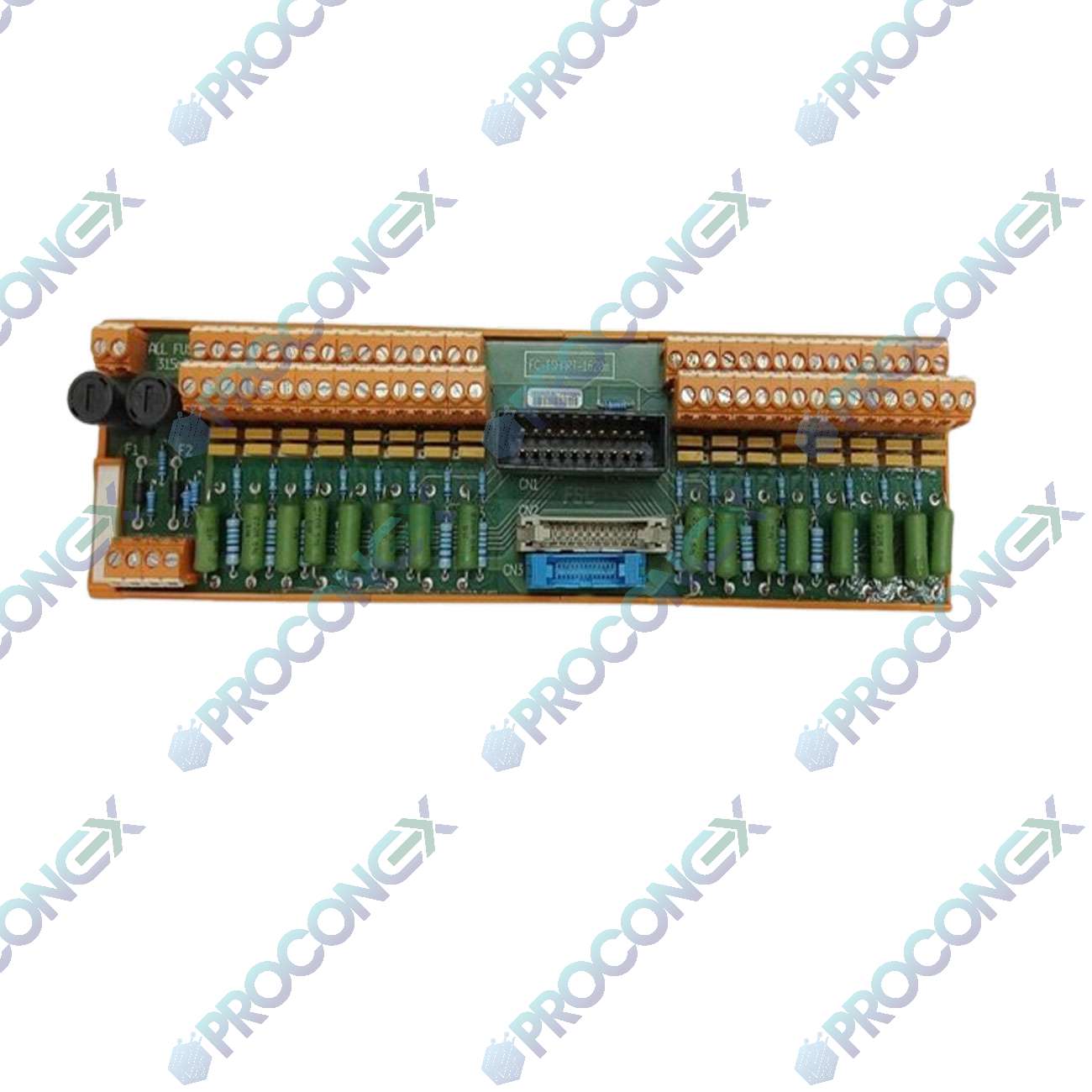

HONEYWELL FC-TSHART-1620M UNIVERSAL SAFETY INTERFACE MODULE

• MPN: FC-TSHART-1620M
  • 30VDC SUPPLY VOLTAGE
  • 4VDC OUTPUT
• Category: Safety Systems
• Subcategory: Safety Controller

Specifications

• General
  • Type numbers
    1. FS-type modules are non conformal coated modules.
    2. FC-type modules are conformal coated modules. Conformal coated modules have the letters “CC” preceding the version number.
  • FS-TSHART-1620m and FC-TSHART-1620m
  • Approvals: CE, TUV, UL, CSA, FM
• Input
  • Number of input channels: 16 (2 groups of 8 with common 0 V)
  • Power requirements: 30 Vdc external, 3 mA (without input loop loads)
  • Input current: 0-25 mA
  • Input resistance: 250 Ω (± 1%)
• Output
  • To passive transmitters (Vext):
    • Output resistance: 270 Ω (± 5%)
    • Igniting current per channel: < 120 mA at 30 Vdc
  • To SAI-1620m module:
    • Output voltage 0-4 Vdc
    • Accuracy 0.1%
  • To HART multiplex unit:
    • Output voltage Max. 5 V peak-peak
    • Series impedance > 100 nF
• Fuses:
  • Rating: 315 mAT (slow-acting)
  • Dimensions: 5 × 20 mm (0.20 × 0.79 in)
• Physical:
  • Module dimensions:
    • 250 × 70 × 60 mm (L × W × H)
    • 9.84 × 2.76 × 2.36 in (L × W × H)
  • DIN EN rails: TS32 / TS35 × 7.5
  • Used rail length: 251 mm (9.87 in)
• Termination
  • Screw terminals:
    • Max. wire diameter: 2.5 mm² (AWG 14)
    • Strip length: 7 mm (0.28 in)
    • Tightening torque: 0.5 Nm (0.37 ft-lb)
