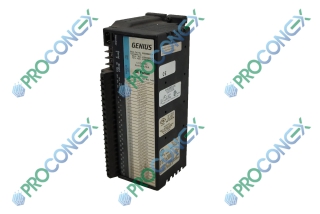

IC660EBD024N – GE Fanuc

Part Details:

Operating voltage (one source)  : 10 to 30 VDC (12/24 V supply)4.9 to 5.3 VDC (5 V supply) (sink only) absolute instantaneous limit.

Ripple (maximum)  :   10% (12/24 volts) , 1% (5 volts).

Required DC power   :  150 mA typical/300 mA maximum .

Power supply dropout time  :   4 ms at 12 volts, 20 ms at 24 volts.

Maximum output current (steady state)  : 0.5 Amps per circuit.

Maximum inrush current   : 4 Amps up to 10ms (once every .5 sec. maximum).

Block output current (total) :  16 Amps.

Output OFF leakage current :  10µA, maximum.

Output turn-on delay :  0.5 ms, maximum.

Output voltage drop  : 2.0 volts maximum at 4 Amps inrush.

Output Diagnostics  : Switch Fault.

Operating Temperature   :  -0° to +60°C (32° to +140°F)Storage.

Temperature   :  -40 °C (-40° to +212°F).

Humidity   :  5% to 95% (non-condensing).

Vibration   :  5-10 Hz 0.2” (5.08mm) displacement, 10-200 Hz at 1G.

Input impedance (typical)  :   3.3K Ohms.

Input processing time (typical) :  1.4 ms (plus selectable filter delay).

Input voltage : 0-12 VDC, 12-24 VDC.

Block to block Isolation  :  850V.
