IC693ALG223C – GE Fanuc
Analog Voltage Input Module. from GE Fanuc
Product Specifications
Model/Part Number: IC693ALG223C
Warranty: One year
Part Type: Analog Voltage Input Module.
Brand/Manufacturer: GE Fanuc
Origin: Made in Charlottesville, Va USA
Delivery: 1 week
Note: Proconex Pvt. Ltd. is NOT an authorized distributor for any of the brands mentioned on this website.
In-Stock: 1
Available, can ship immediately
Part Details:

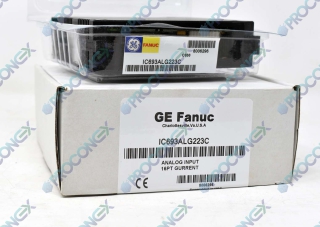

GE Fanuc IC693ALG223C Analog Current Input Module.
Description
Manufacturer : GE Fanuc .
Model : IC693ALG223C.
Type : Analog Voltage Input Module.
Condition : Used-Good Condition.
TECHNICAL SPECIFICATIONS:
No. of channels : 1 to 16 selectable.
Input Current Range : 0 to 20 mA, 4 to 20 mA and 4 to 20 mA enhanced.
Calibration : Factory calibrated to 4 µA per count or 5 µA per count.
Update Rate : 13 msec (all 16 channels).
Input Filter Response : 19 Hz.
Power Consumption : 120 mA from the +5 V bus or 65 mA from the +24 V bus.
