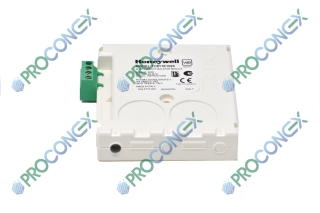

TC811E1023 – Honeywell
In-Stock: 1
Available, can ship immediately
Part Details:
Short Circuit Isolator Module
Model No : TC811E1023.
Operating Voltage Range : 15 to 30VDC (Min 17.5VDC to ensure LED operation).
Maximum Standby Current : 200µA at 24VDC.
Isolation Current : 15 mA.
Operating Temperature : -20°C to 60°C.
Humidity : 5% to 95% Relative Humidity.
Weight (Module Only) : 62g.
Weight (Module in M200E-SMB) : 200g.
Maximum Wire Gauge : 2.5mm².
