DS200ACNAG1ADD – GE - General Electric
Arcnet Connection Control Board from GE - General Electric
In-Stock: 1
Available, can ship immediately
Part Details:
Arcnet Connection Control Board.
Model : DS200ACNAG1ADD.
Brand : GE General Electric.
Origin : Made In USA.
DS200ACNAG1ADD has two BNC connectors. The BNC connectors on DS200ACNAG1ADD are labeled A and B.
The DS200ACNAG1ADD card provides a connection point for ARCNET LAN communications within the MKV system. Board signals travel on a pathway between the main processor board (LDCC,) through the ARCNET board, to the turbine control operator interface and back again. These signals travel via co-axial cables.

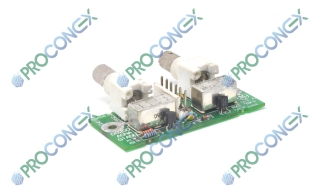

The DS200ACNAG1ADD is a small circuit board with few components. The board has four metal film resistors (R1 through R4,) three capacitors (C1 through C3,) and one diode. Two factory-drilled holes located on either side of the board have a metal washer inserted into their opening. These two openings are marked as GND1/GND2. Two relays are located near the bottom edge of the board. Both relays include a relay diagram on their top surface. Relay diagrams are visual representations of the relay logic that allows the relay to function.
The DS200ACNAG1ADD has three communications devices. This includes a vertical pin terminal connector with six pins that is placed in the very center of the board, as well as two BNC plugs (right-angled, female) that are placed with the openings off the top edge of the board. These plugs will accept the LAN coaxial cables.
