TK-IDD321 – Honeywell

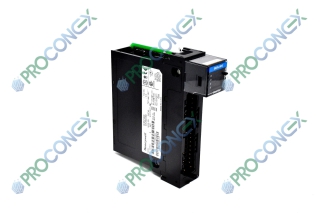

Discrete Input Module from Honeywell

Product Specifications

Model/Part Number: TK-IDD321

Part Type: Discrete Input Module

Delivery: 1 week

Note: Proconex Pvt. Ltd. is NOT an authorized distributor for any of the brands mentioned on this website.

In-Stock: 1

Available, can ship immediately

Part Condition

Choose Part Conditions

Part Availability

Choose Part Availability

Part Details:

Discrete Input Module, 32-Point.

Model No : TK-IDD321.

Part No : 97271571 B01.

Origin : Made In USA.

DC input 24 VDC 32-PT Coated.

Number of Inputs : 32 (16 points/common).

On-stage Voltage Range : 10-31.2 VDC @ 60 ?C all channels.

On-State Current (Minimum) : 2 mA.

Off-State Voltage (Maximum) : 5 V.

Off-State Current (Maximum) : 1.5 mA.

Power Dissipation : 6.1 W max.

Short/Inrush Current : 250 mA peak (decaying to <37% in 22 ms, without activation).

Connection Terminal Blocks : TC-TBCH, 36-position terminal block.

1BP : 120mA@51.V.BP:2mA@24VDC.Input:10-31.2VDC.

input:5.5mA@31V.
