RHP-3D1B – DWYER
In-Stock: 1
Available, can ship immediately
Part Details:

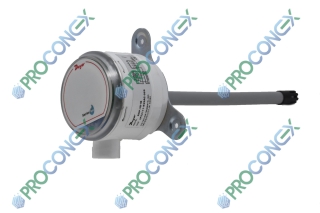

Humidity/temperature Transducer -40 To 140f.
Model no : RHP-3D1B.
Electrical Connections : Terminal Board.
Enclosure Rating : NEMA 4X.
Humidity Accuracy : +/-3%.
Mounting : Duct.
Output : 4 to 20mA.
Power Required : 10 to 35VDC.
Probe Dia. : 27/50".
Probe Length : 9".
Process Connection : 1/2" NPS.
Relative Humidity Range : 0 to 100%.
Response Time : 15 sec.
Sensor Type : RTD or Thermistor.
Temp. Accuracy : +/-0.4 Degrees F @ 77 Degrees F.
Temp. Range : -40 to 140 Degrees F.
Series : RHP.
